RFID SHIELDING

, RFID Shielding

RETAIL and SUPPLY CHAIN professionalsMake the traceability of your stocks, stores and warehouses fully reliable and save time while optimizing performance

Saving 25 % of sales time

Your difficulties

  • Difficulty in having reliable information in stocks, stores and warehouses,
  • Few reliable solutions exist on the market, and are not committed to result,
  • Need to block UHF waves only while letting other waves pass through (Wifi, Bluetooth, GSM, Walkie Talkies),
  • Manual inventory recount operations by store teams cause them to waste precious sales time.

Our solution

CorsoShield®, a range of shielding solutions that guarantees total reliability of the traceability of tagged data. It guarantees the performance of the readings and optimize the time dedicated to sales.

The range consists of 3 technologies :

  • CorsoShield WALL : isolation paint films for walls, floors and ceilings
  • CorsoShield FABRICS : isolation textile for packaging boxes, pallets, curtains…
  • CorsoShield WINDOW : Isolation transparent films for windows

Isolation paint films
for walls, floors and ceilings

Isolation textile for
packaging boxes, pallets, curtains

Isolation transparent
films for windows

CorsoShield Wall : Products features

  • Water-based acrylic paint films complexed to a glass mat
  • Functionalized with a specific treatment to sufficiently attenuate UHF waves without blocking the others (Wifi and GSM)
  • Proposed in several finishies : Baseline, Backstore
  • Packaged in rolls with sizes suitable for use
  • Available in decorative white or pearl grey
  • Complies with public fire standards
  • More details on the technical sheets

CorsoShield Wall : Products features

  • Water-based acrylic paint films complexed to a glass mat
  • Functionalized with a specific treatment to sufficiently attenuate UHF waves without blocking the others (Wifi and GSM)
  • Proposed in several finishies : Baseline, Backstore
  • Packaged in rolls with sizes suitable for use
  • Available in decorative white or pearl grey
  • Complies with public fire standards
  • More details on the technical sheets
, RFID Shielding

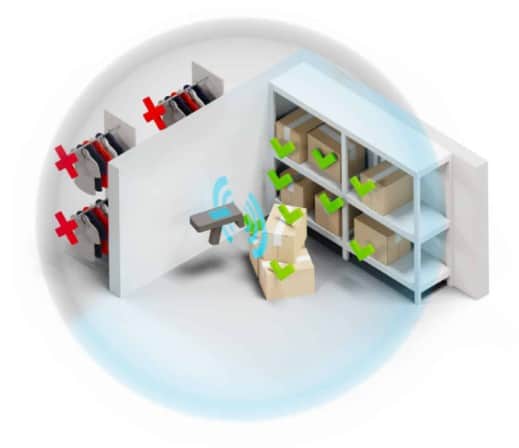

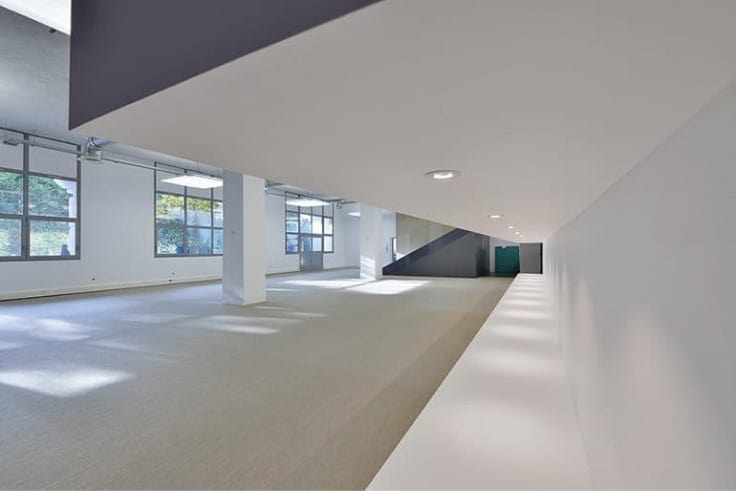

CorsoShield Wall : Usage

  • Ideal for all surfaces (walls, ceilings, floors) of stores, stockrooms and warehouses requiring RFID isolation
  • Vertical or horizontal application of dry paint bands by unrolling directly onto the substrate

CorsoShield Wall : Benefits

  • Immediate time saving
  • RFID waves blocked through surfaces
  • GSM and Wi-fi waves still active
  • Facilitates inventory management, information collection and the work of field teams
  • No smell and no harmfulness for installers, employees and customers, including when the premises are occupied
  • Robust, prevents the appearance of micro-cracks which are the source of leaks
  • Easy to install (up to 30 m²/h) – without activity interruption
  • Finished surface, uniform and in white paint
, RFID Shielding
, RFID Shielding

CorsoShield Wall : Benefits

  • Immediate time saving
  • RFID waves blocked through surfaces
  • GSM and Wi-fi waves still active
  • Facilitates inventory management, information collection and the work of field teams
  • No smell and no harmfulness for installers, employees and customers, including when the premises are occupied
  • Robust, prevents the appearance of micro-cracks which are the source of leaks
  • Easy to install (up to 30 m²/h) – without activity interruption
  • Finished surface, uniform and in white paint
, RFID Shielding

CorsoShield Wall : Proofs & Certifications

  • Obligation to achieve results after study and recommendations
  • A frequency of 45 dB, attenuation of waves at 850-960 MHz = middle ground between the effectiveness of RFID isolation and the passage of other waves
  • A+ health labelling certified (according to ISO 16000)
  • Reaction to fire classification (Euroclass) : BS1d0
  • Chosen by two of the five largest global brands in Fashion Retail

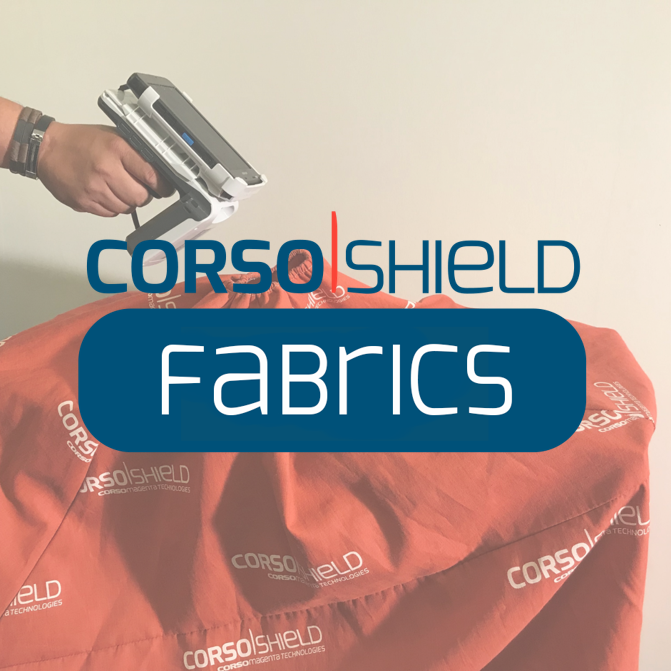

CorsoShield Fabrics : Product features

  • Isolation textile for shielding UHF waves for boxes, pallets, curtains
  • Standard for boxes up to : H40 x L40 x W60 cm
  • tailored sizes available on demand
  • Colors/Printing on demand
  • Cold washable (< 30° C)
  • More details on the technical sheets

CorsoShield Fabrics : Product features

  • Isolation textile for shielding UHF waves for boxes, pallets, curtains
  • Standard for boxes up to : H40 x L40 x W60 cm
  • tailored sizes available on demand
  • Colors/Printing on demand
  • Cold washable (< 30° C)
  • More details on the technical sheets
, RFID Shielding

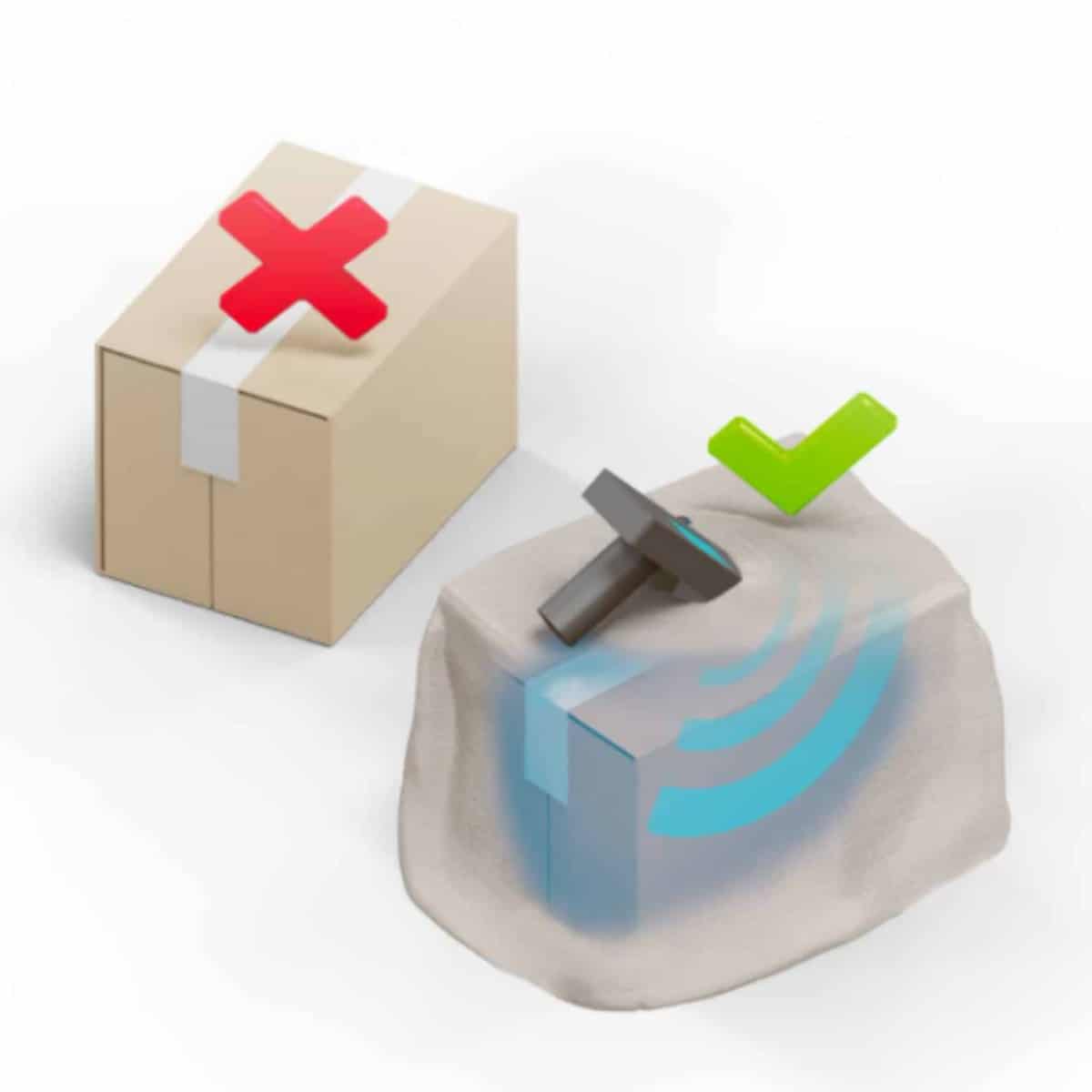

CorsoShield Fabrics : Usage

  • Ideal for collection returns, stock transfers, click and collect
  • For quick mass reading inside a box, without reading the other tags in the surrounding area
  • Zone dividers

CorsoShield Fabrics : Benefits

  • Immediate time saving (no connection or set-up required)
  • RFID waves blocked through the CorsoShield Box
  • Improved and more powerful reading thanks to generated rebounds
  • Light and compact, easy to use
  • Compliant with all readers
  • Smartphone or devices still connected by Bluetooth
, RFID Shielding
, RFID Shielding

CorsoShield Fabrics : Benefits

  • Immediate time saving (no connection or set-up required)
  • RFID waves blocked through the CorsoShield Box
  • Improved and more powerful reading thanks to generated rebounds
  • Light and compact, easy to use
  • Compliant with all readers
  • Smartphone or devices still connected by Bluetooth
, RFID Shielding

CorsoShield Fabrics : Proofs & Certifications

  • Chosen by two of the five largest global brands in Fashion Retail
  • A frequency of 41 dB, attenuation of waves at 850-960 MHz = middle ground between the effectiveness of RFID isolation and the passage of other waves,
  • A+ health labeling certified (according to ISO 16000)

CorsoShield Window : Shielding with Light Transmittance

  • Time savings, Easy to install
  • Attenuation at 900 Mhz
  • Reliability of data collection
  • RFID waves blocked, GSM and Wi-Fi still functional
  • Aesthetic finish, enabling better work conditions for store staff
  • Gold: 32 db 1 layer, 41 db 2 layers, 65% light transmission
  • Silver: 25 db 1 layer, 73% light transmission
, RFID Shielding
, RFID Shielding

CorsoShield Window : Shielding with Light Transmittance

  • Time savings, Easy to install
  • Attenuation at 900 Mhz
  • Reliability of data collection
  • RFID waves blocked, GSM and Wi-Fi still functional
  • Aesthetic finish, enabling better work conditions for store staff
  • Gold: 32 db 1 layer, 41 db 2 layers, 65% light transmission
  • Silver: 25 db 1 layer, 73% light transmission

Product range

, RFID Shielding

Isolation paint film for walls, floors and ceilings (Pearl grey)

, RFID Shielding

Isolation paint film for walls, floors and ceilings (Satin white)

, RFID Shielding

Isolation paint film for walls, floors and ceilings (Matt white)

, RFID Shielding

Isolation textile for
packaging boxes,
pallets, curtains

, RFID Shielding

Isolation transparent films for windows

Download our technical sheets

CorsoShieldTechnical Specifications


Download

Get in touch

Do you have a question?Please leave us a message!
